Offices at Santa Clara Square

Santa Clara, CA – Honor Award, Commercial and Public Works – Large Projects

CONSULTANT

Steve Hohl, Water Concern, Ltd.

PROJECT OVERVIEW

  • Large commercial technology campus that is a part of a larger development consisting of apartments, retail and the office campus
  • The landscape area is 15.1 acres and includes streetscapes, medians, volleyball courts, basketball courts, relaxing spaces, large existing and newly planted specimen trees, outdoor amenity spaces, and spacious open event lawns
PROJECT NARRATIVE
  • The irrigation system utilizes a combination of spray and inline drip irrigation
  • Tree irrigation systems are isolated by species, each with its own control valve to accommodate differing water requirements
  • The irrigation system consists of 13 weather-based ET controllers with advanced irrigation parameter programming
  • Basket strainer filtration and master valve assemblies filter and control mainline pipe flow with sensor technology to monitor for high or low flows
  • Fertilizer injection assemblies are utilized at each point of connection to allow micro-dosing of nutrients as needed
ROLE OF THE IRRIGATION CONSULTANT
  • Master planning irrigation services for the entire project
  • Irrigation design / construction documents
  • Redwood blending system coordination, design and drawings
  • Specifications
  • Controller programming parameters
  • LEED calculations and documentation
  • Bid and RFI support
  • Observation and subsequent reports during and after construction. The project involved seven visits
SPECIAL FACTORS
  • It was essential that the existing Sequoia (Redwood) trees within the property be preserved
  • It was a goal to meet LEED Gold; the outdoor water use efficiency credit was required to reduce potable water use by 50% from the baseline (2 points) and utilize recycled water to further reduce potable use (2 points.) Achieving both would earn the maximum possible four points
  • The City denial to irrigate only the Redwoods with potable water due to the sensitive public awareness of the ongoing drought

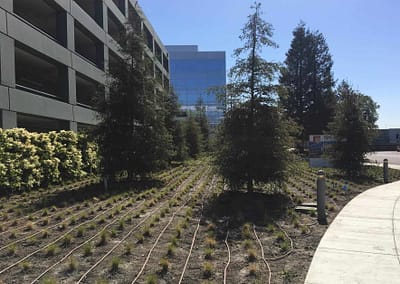

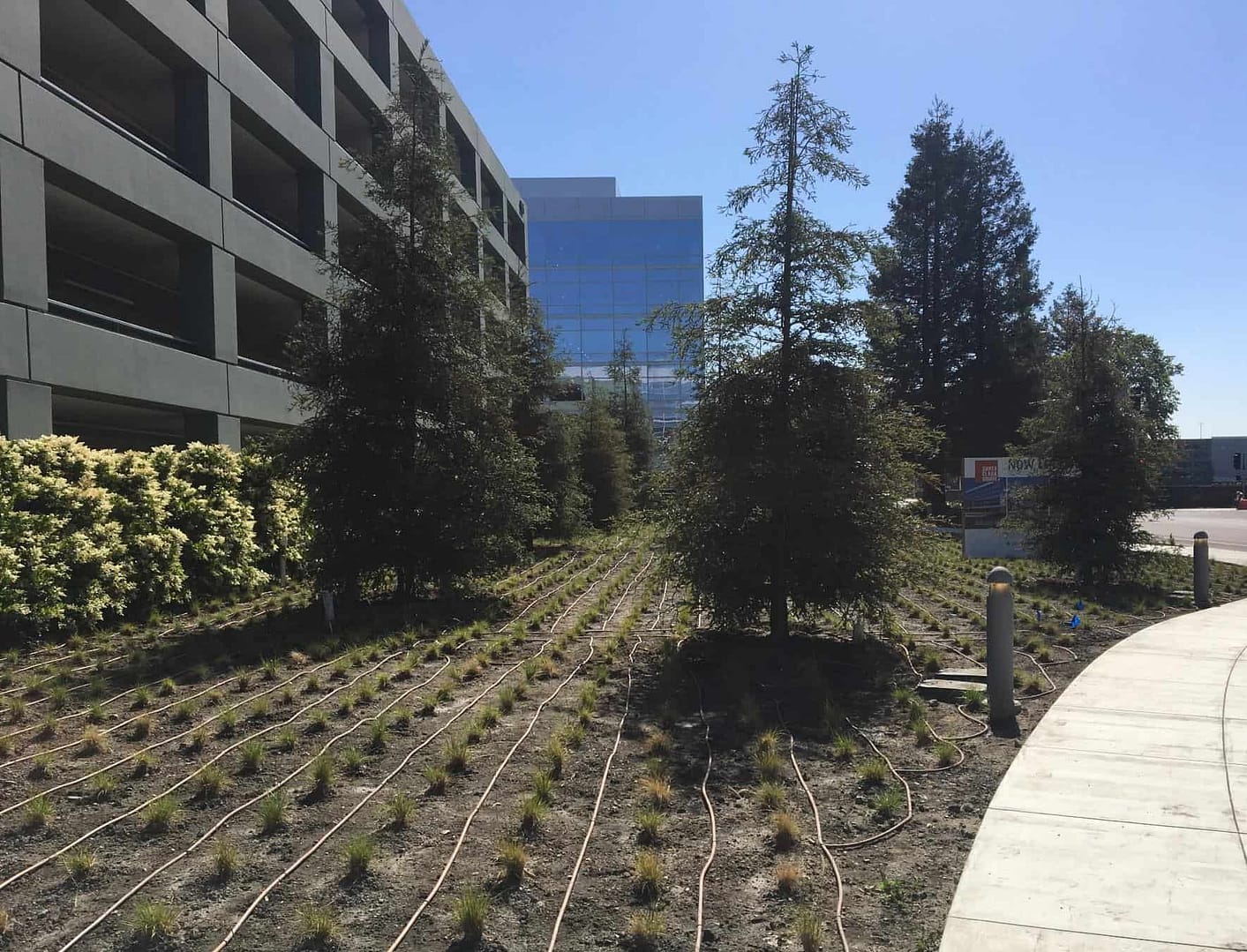

Dripline layout during construction

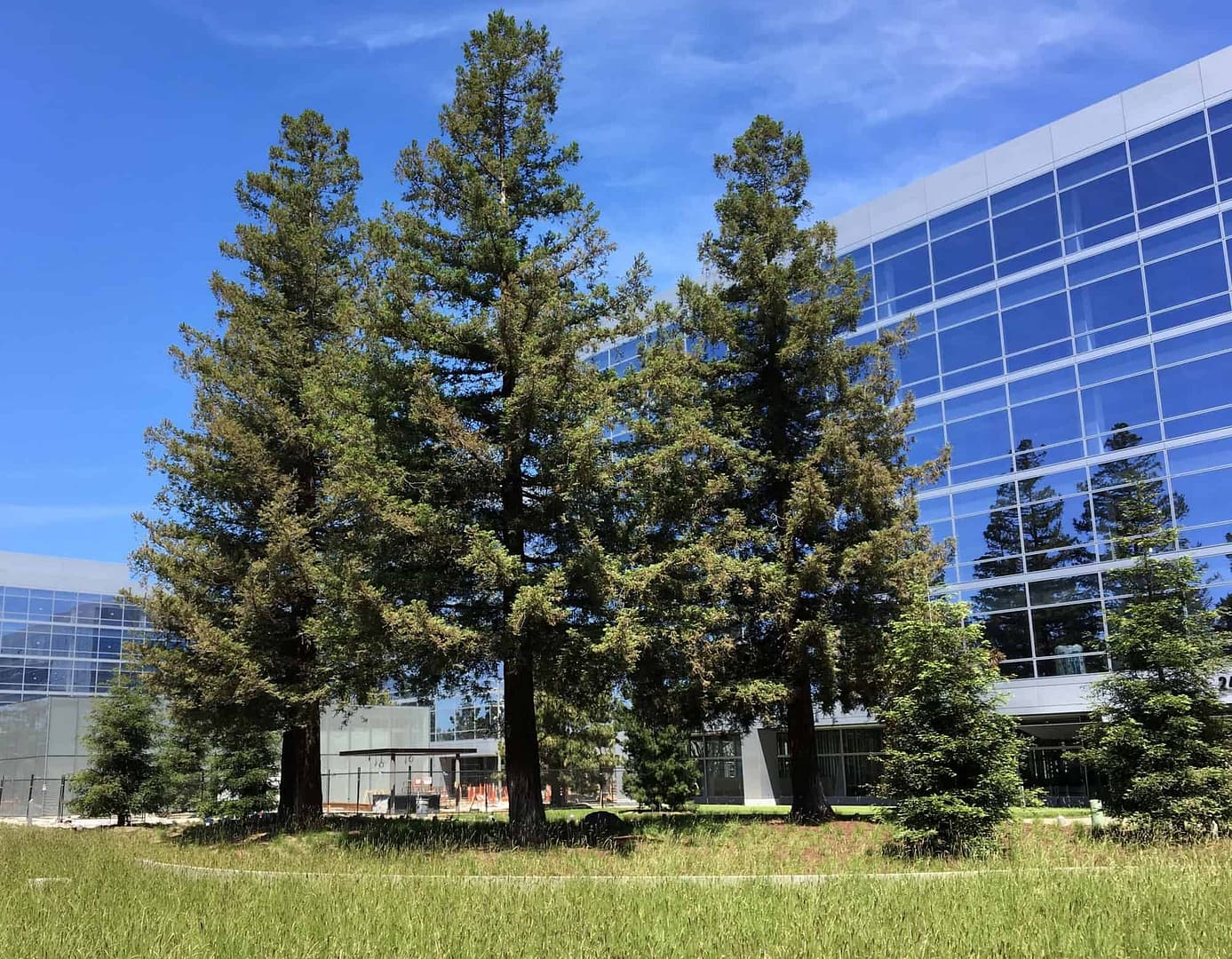

  Healthy Redwoods

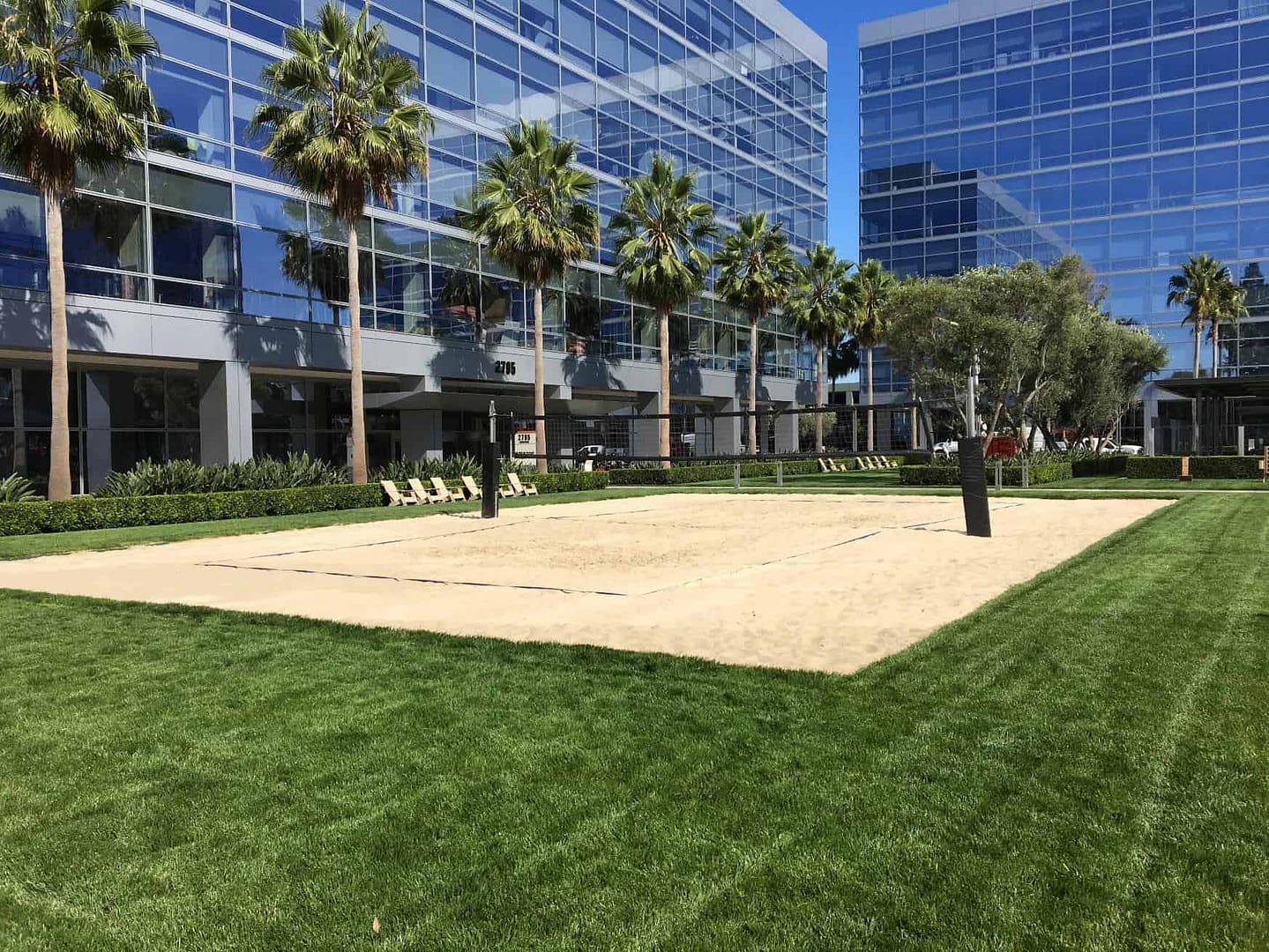

View of landscape and amenities

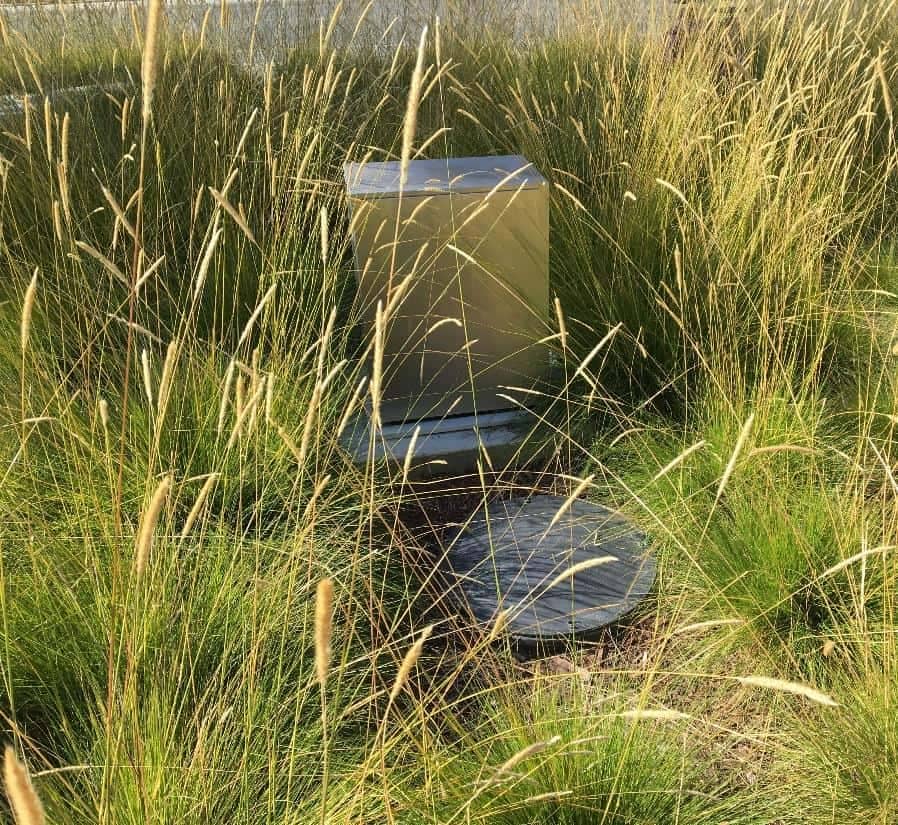

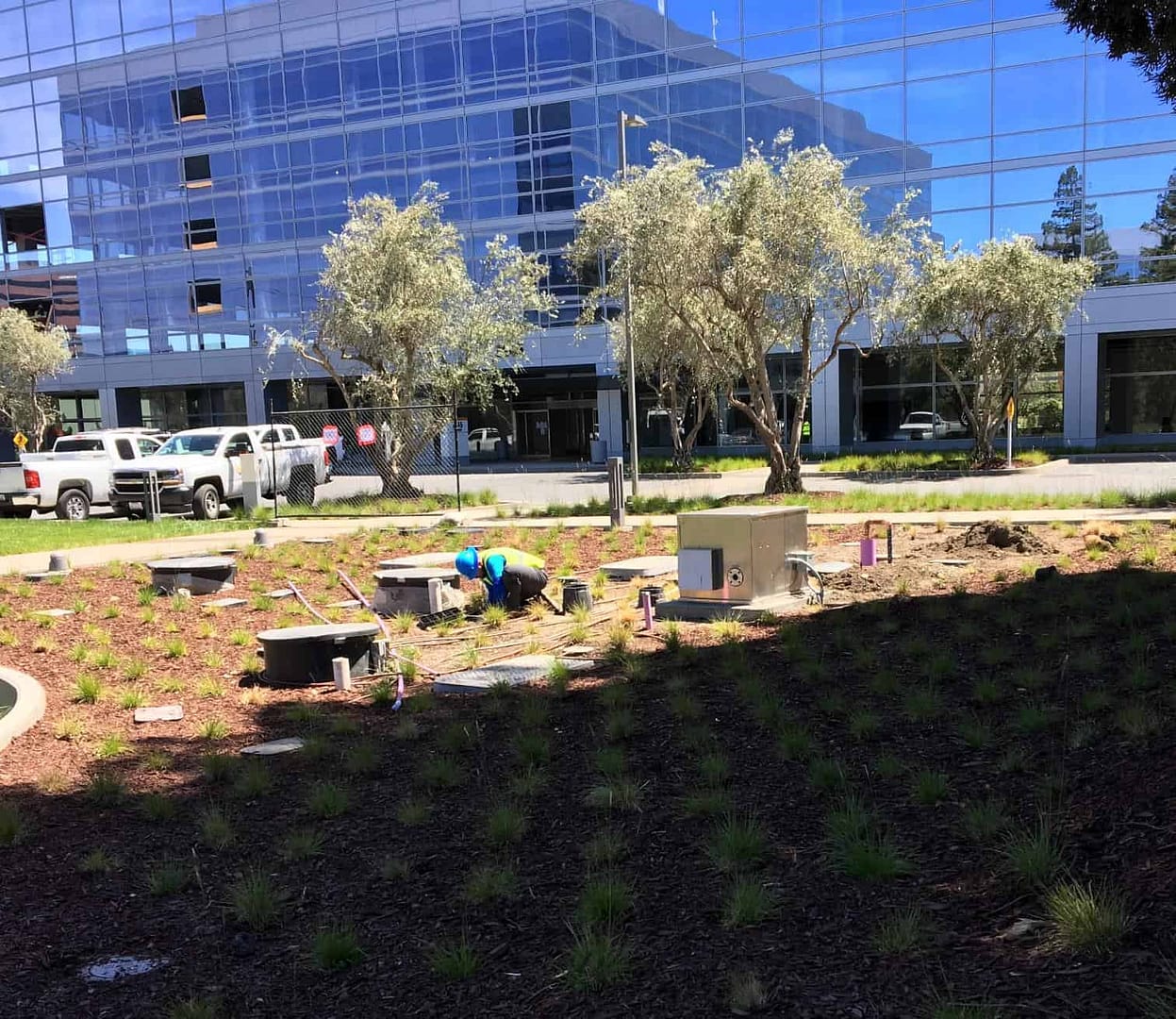

Potable water supply assembly with protective enclosure. Access hatch to blending tank appears in front

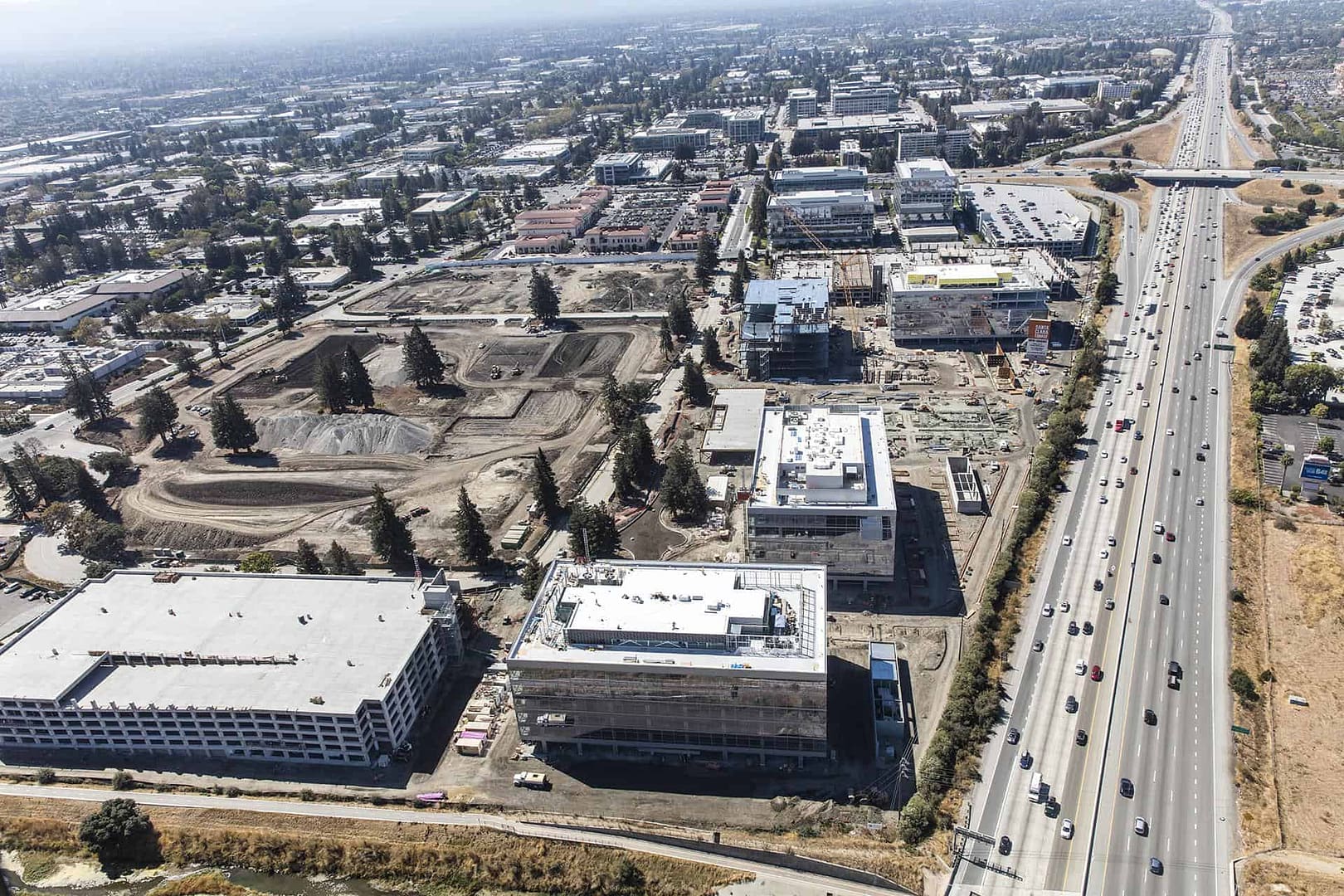

     Aerial view during construction

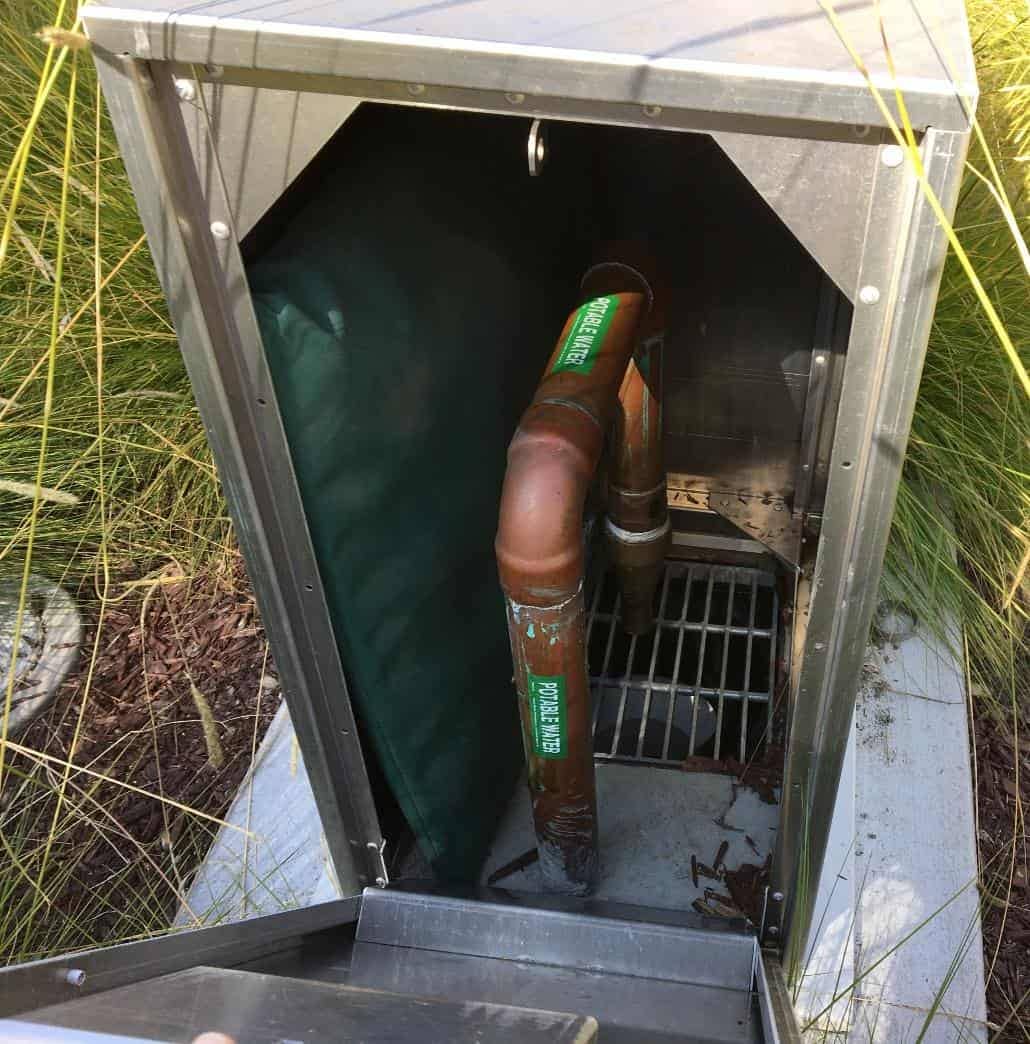

 Supply pipe with laminar flow   nozzle and air gap

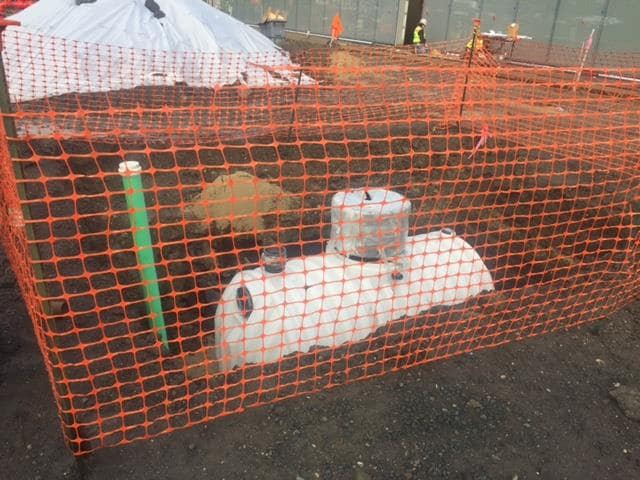

Blending tank prior to backfill



Blending assembly during construction
