Watertronics WaterMax® Self-Enclosed Pump Station



WaterMax® 9000 Self-Enclosed Pump Station

Ideal for smaller golf courses or large commercial turf projects, the WaterMax® 9000, from Watertronics, delivers the advanced technology and performance of a full-scale system in a compact, self-contained design – eliminating the need for a pump house.

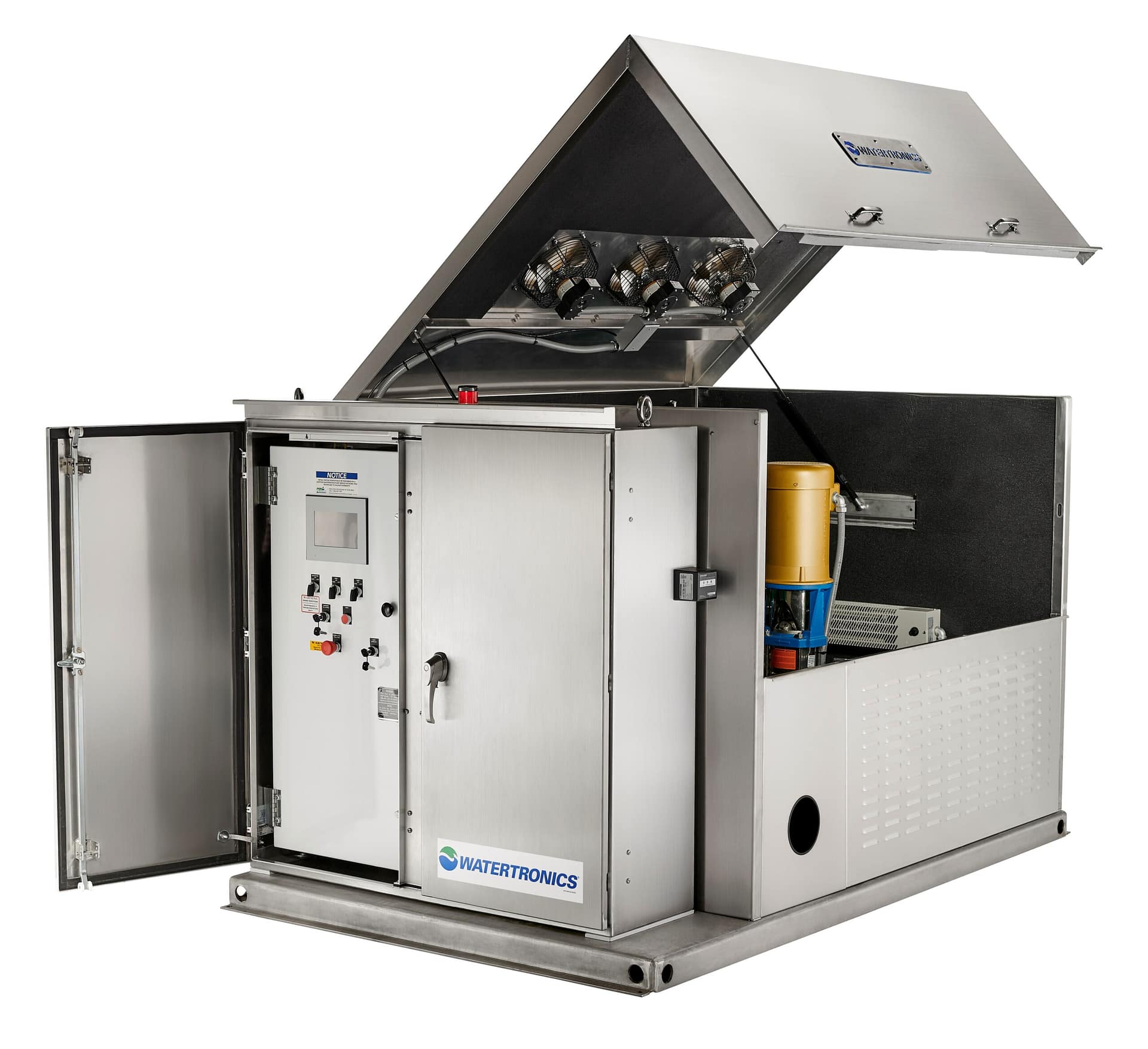

Housed in a sleek, rustproof Marine Grade Aluminum enclosure (just 55.5”W x 90”L x 55.25”H), the WaterMax 9000 is engineered to handle even the most demanding irrigation needs, whether drawing from a lake, pond, or boosted city supply.

 Key Specs & Features

  • Flow Range: Up to 1000 GPM
  • Pressure: Up to 140 PSI
  • Horsepower: Up to 60 HP (multi-pump options available—consult factory)
  • Voltage Options: 240V/1PH, 208V/3PH, 240V/3PH, 480V/3PH, 575V/3PH
  • Controls: Advanced PLC with 10” touchscreen
  • Pressure Regulation: VFD-controlled for precision
  • Enclosure: Corrosion-resistant, marine-grade aluminum
  • Integration: Optional WV 2.0 for golf central control systems
  • Installation: Factory-assembled with simple intake, discharge, and electrical connections
  • Testing: Pre-shipment testing under site-specific conditions
  • Optional Add-ons: WaterVision® remote monitoring, enclosure heater, HDPE suction lines, Electronic Butterfly Valve (EBV)
  • Certifications: UL Listed; in-house UL 508A panel shop
  • Warranty: 2-year bumper-to-bumper (parts & labor)
  • Support: Industry’s largest service team via Pump Service Network® (PSN)
